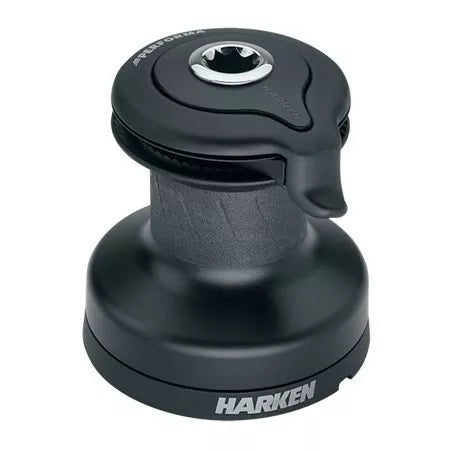

20 Self-Tailing Performa™ Winch — AL/1 Speed

20 Self-Tailing Performa™ Winch — AL/1 Speed

£615.00
£615.00
Sale Sold out
Shipping calculated at checkout.

In stock
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Minimum line Ø (mm) 6 mm
Minimum line Ø (in) 1/4 in
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 1/2 in
Configuration Self-tailing
Speed 1
Drum Ø (mm) 73 mm
Drum Ø (in) 2 7/8 in
Base Ø (mm) 137 mm
Base Ø (in) 5 3/8 in
Height (mm) 148 mm
Height (in) 5 13/16 in
Weight (kg) 2.4 kg
Weight (lb) 5.3 lb
Line entry height (mm) 61 mm
Line entry height (in) 2 3/8 in
Fastener circle (in) 4 3/8 in
Fastener circle (mm) 110 mm
Fasteners (mm) M6 SH mm
Fasteners (in) 1/4 SH in
Number of fasteners 5
Gear ratio - 1 2.76
Power ratio - 1 19.20
