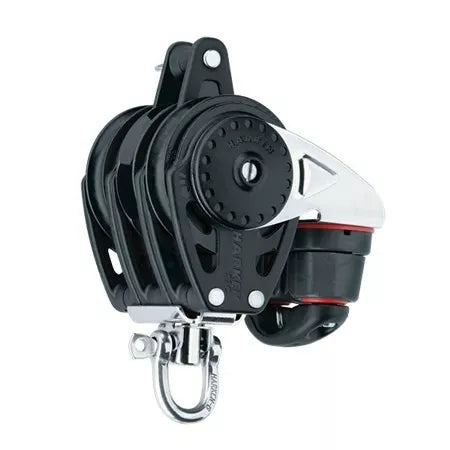

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.
Harken Part No: 2630 Sheave Ø (mm) 57 mm Sheave Ø (in) 2 1/4 in Length (mm) 125 mm Length (in) 4 15/16 in Weight (g) 431 g Weight (oz) 15.2 oz Maximum line Ø (mm) 10 mm Maximum line Ø (in) 3/8 in Maximum working load (kg) 816 kg Maximum working load (lb) 1800 lb Breaking load (lb) 4500 lb Breaking load (kg) 2041 kg Shackle pin Ø (mm) 6 mm Shackle pin Ø (in) 1/4 in Holding power 10:1
