Harken

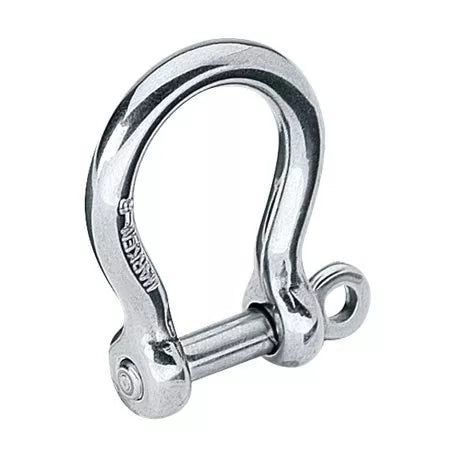

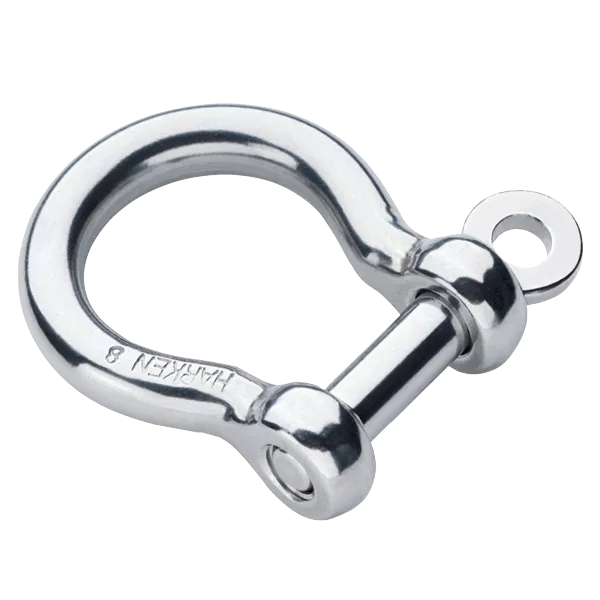

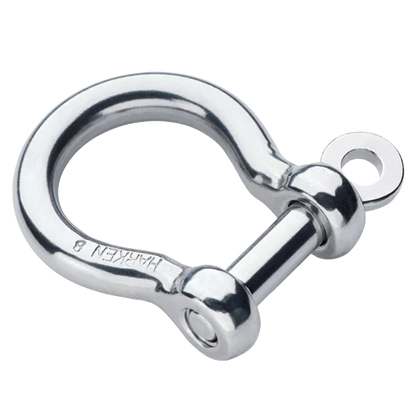

5mm Bow Shackle
5mm Bow Shackle
Regular price
£7.20
Regular price
Sale price
£7.20
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Harken Part No: 2103
| Weight (g) | 18 g |
| Weight (oz) | 0.64 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (lb) | 2380 lb |
| Breaking load (kg) | 1080 kg |
| A (mm) | 25 mm |
| A (in) | 1 in |
| B (mm) | 10 mm |
| B (in) | 3/8 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| C (mm) | 17 mm |
| C (in) | 11/16 in |
