Harken

5mm Large Open Shackle

5mm Large Open Shackle

£11.50
£11.50
Sale Sold out
Shipping calculated at checkout.

In stock

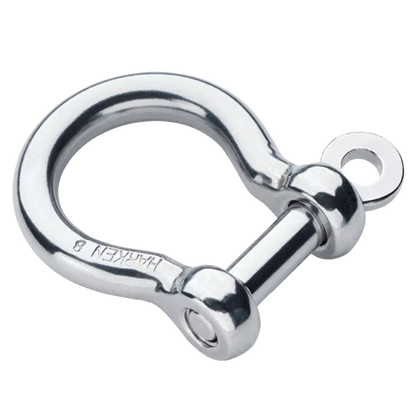

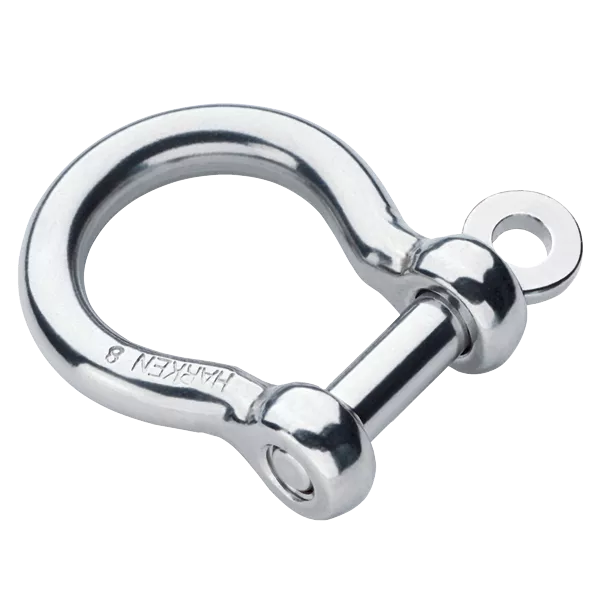

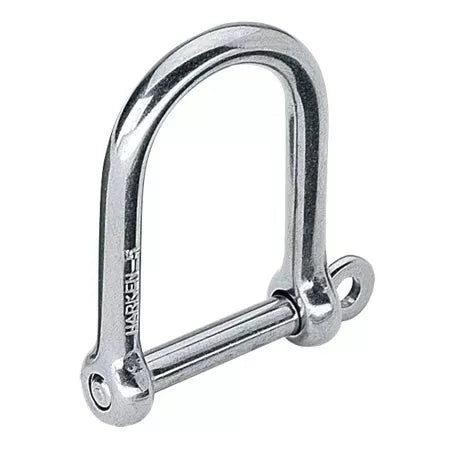

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Large open shackles have a similar shape to "D" shackles but are proportionally wider for their length.

Harken Part No: 2106



Weight (g) 25 g
Weight (oz) 0.88 oz
Maximum working load (kg) 350 kg
Maximum working load (lb) 770 lb
Breaking load (lb) 2200 lb
Breaking load (kg) 1000 kg
A (mm) 33 mm
A (in) 1 5/16 in
B (mm) 20 mm
B (in) 13/16 in
Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
